AX3T,115AC,N,422DH

Write a Review
MPN:
026964000
Availability:
Yes
Maximum Purchase:
199 units
Frequently bought together:

Description

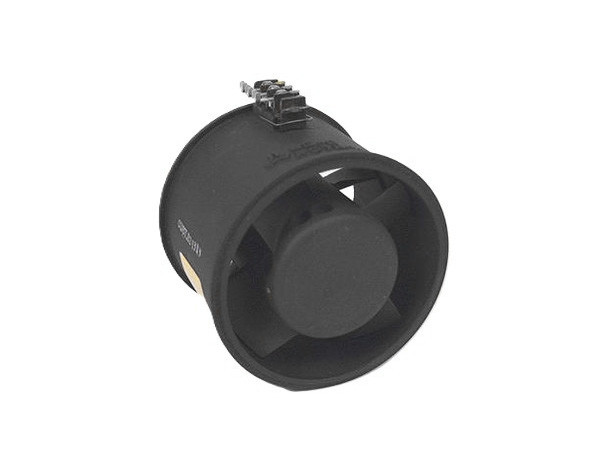

The Aximax 3 fan, like other vaneaxial fans, has both aerodynamic impeller blades and stationary guide vanes to enhance static pressure efficiency. These high speed fans achieve maximum performance and minimum size with the unique inverted AC induction motor The venturi case and propeller are cast aluminum. Rotron's unique inverted motor rotorprop impeller stainless steel shaft runs on two high-precision (ABEC 5), double-shielded, stainless steel ball bearings with an integral lubricant reservoir to give longer maintenance-free life. Contact AMETEK Rotron for specific ratings. Rotron rates life expectancy in hours L10 or MTBF at a given ambient temperature. This is the time at which 90%, for L10, and 50%, for MTBF, of an available test lot are still operating.
View AllClose

Warranty Information

WARRANTIES



A. Seller warrants that Products manufactured by Seller, when delivered, shall be free from defects in material/workmanship. Seller warrants that Services shall be performed in accordance with generally accepted industry practice. Seller's obligations under this warranty shall be limited exclusively to repairing or replacing, at Seller's option, any part of Products which, if properly installed, used and maintained, proved to have been defective in material or workmanship within 1 year from the date of shipment, or re-performing the Services. Seller warrants for a period of 1 year from the date of shipment that software or firmware, when used with Products, shall perform in accordance with Seller’s published specifications. Seller makes no warranty, express or implied, that the operations of the software or firmware shall be uninterrupted or error-free, or that functions contained therein shall meet or satisfy the Buyer’s intended use/requirements. Buyer shall notify Seller of any defect in the quality or condition of Products (including software/firmware) or Services within 7 days of the date of delivery or performance, unless the defect was not apparent on reasonable inspection, in which case, within 7 days after discovery of the defect.   If Buyer does not provide such timely notification, it shall not be entitled to reject Products (including software/firmware) or Services, and Seller shall have no liability for such defect.



B. Seller's warranty obligations shall not apply to Products which (1) have been altered or repaired by someone other than Seller, or (2) have been subjected to misuse, neglect, or improper use or application, or (3) are normally consumed in operation, or (4) have a normal life inherently shorter than the warranty period stated therein.



C. No Products may be returned unless authorized in advance by Seller, and then only upon such conditions to which Seller may agree. Buyer must obtain a Return Material Authorization (RMA) number from Seller prior to any return shipment, and such RMA number must appear on the shipping label and packing slip. Buyer shall be responsible for returned Products until such time as Seller receives the same at its facility, and for all charges for packing, inspection, shipping, transportation or insurance associated with returned Products.



D. This section sets forth the exclusive remedies and obligations for claims based upon defects in or nonconformity of Products/Services, whether the claim is in contract, warranty, tort (including negligence of any degree or strict liability) or otherwise. THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, WHETHER ORAL, WRITTEN, EXPRESS, IMPLIED OR STATUTORY. NO IMPLIED OR STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL APPLY.



To receive a Return Material Authorization (RMA) please visit the Contact Us page of www.rotron.com or follow this link:



https://www.rotron.com/contact-us/return-material-authorization

View AllClose

Additional Information

Family:
Aximax
Line Voltage[V]:
115
Voltage Type:
AC
Phase(s):
1
Frequency [Hz]:
400
Max Ambient Temp [C]:
125
Datasheet:
